METAL STAMPING & DEEP DRAWINGS

Metal Stamping and Deep Drawing are the backbones of Samtan Engineering’s business. Mild steel, stainless steels, aluminum, copper, and brass alloys; Nylon, Mylar, and phenolics; Inconel, Monel, and molybdenum; Samtan has experience with a multitude of materials in an array of thicknesses.

METAL STAMPING

With more than 45 punch presses in operation, ranging in capacity from 3 to 105 tons, the stamping department at Samtan has the flexibility to produce an enormous variety of precision metal stampings; from simple stampings to intricate assemblies. The great variety of our presses in available tonnage, stroke, shut height, bed size, and speed provides us the ability to run an abundance of part shapes & sizes. Capable of short, medium, and long production runs, whatever the requirements of your design, Samtan Engineering has the ability to turn your stamping concept into a reality. Below is a partial list of our stamping presses.

Open Back Inclinable:
(7) Bilss
10 - 95 Tons
(6) Niagara
45 - 105 Tons
(5) V&O
10-75 Tons
(2) Johnson
30 - 45 Tons
Rockford (2)
50 Tons
(2) Walsh
10-65 Tons
(1) Alva Allen
25 Tons
(1) Canullo
90 Tons
(1) Daily
45 Tons
(1) Federal
60-75 Tons
(1) L&J
50 Tons
(1) McDonald
15 Tons
(1) Perkins
75 Tons
(1) Pexto
60 Tons
(1) Rouselle
7 Tons
(1) Toledo
50 Tons
(1) Warco
50 Tons

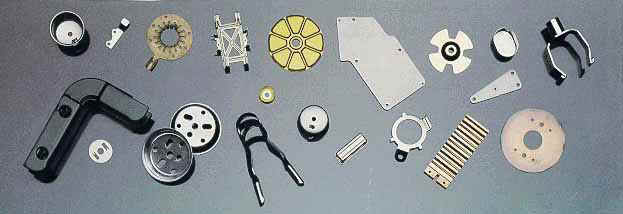

Typical Metal Stampings

Typical Metal Stampings

Straight Side:
(1) Bliss
75 Tons
Open Back Inclinable:
(2) Benchmaster
5 Tons
(3) V&O
3 Tons

DEEP DRAWING

Our combination of multiple-action draw presses and punch presses equipped with draw cushions allows Samtan Engineering to produce an array of deep drawings. With 5 mechanical and 3 hydraulic double-action draw presses, ranging in capacity from 50 to 550 tons, our draw department is capable of producing parts of diverse sizes and complexity. In addition to the large part capability of our multiple action presses, our complement of 8 draw cushion-equipped OBI punch presses provides us the capacity to economically produce smaller drawn parts as well. We routinely draw parts of all shapes and sizes, from a 3/8″ cylindrical shell to a 30″ long buffet pan. For drawn parts: large or small, low quantity or high volume, Samtan Engineering has the equipment and experience to fulfill your requirements.
Below is a partial list of our deep drawing presses.

550 Ton Capacity
Deep Drawing Press

Mechanical:
(5) Bliss
50 - 125 Tons
Hydrolic:
(1) HPM
175 Tons
(1) HPM
550 Tons
(1) Lake Erie
500 Tons
12" Deep X 18" Diameter Multiple Draw Automotive Housing

12″ Deep X 18″ Diameter Multiple Draw Automotive Housing
